Compact coverage / fast deployment

Small
unit.
Serious
view.

Wide-angle fixed-dome imaging, remote zoom and focus, integrated connectivity and internal battery backup—packed into a compact platform built for fast deployment.

Build your deployment Download brochure
104° Wide view
25 lb Unit weight
8.6 W Typical PoE
MINI / AC powered Compact system ready
SentryPODS MINI compact AC-powered surveillance unit

Fixed dome · 4G LTE · 288 Wh backup

01 / Wide-angle view 02 / Remote adjustment 03 / Network redundancy 04 / Battery backed

Compact coverage without compromise

Everything needed.
Nothing wasted.

MINI makes capable surveillance easier to place across commercial and industrial sites, with resilient communications and backup power built in.

  1. 01

    Wide-angle dome

    A 104-degree horizontal view supports efficient area coverage.

  2. 02

    Remote adjustment

    Varifocal 3–8 mm lens with remote zoom and focus control.

  3. 03

    Always connected

    Integrated 4G LTE, Wi-Fi, GPS and dual Ethernet ports.

  4. 04

    Battery backup

    AC operation with a 288 Wh internal lithium-ion battery.

  5. 05

    Compact footprint

    A 22 × 10 × 6-inch, 25-pound unit for flexible placement.

  6. 06

    Rugged deployment

    Weather-resistant construction with IP66, IP67 and IP68 ratings.

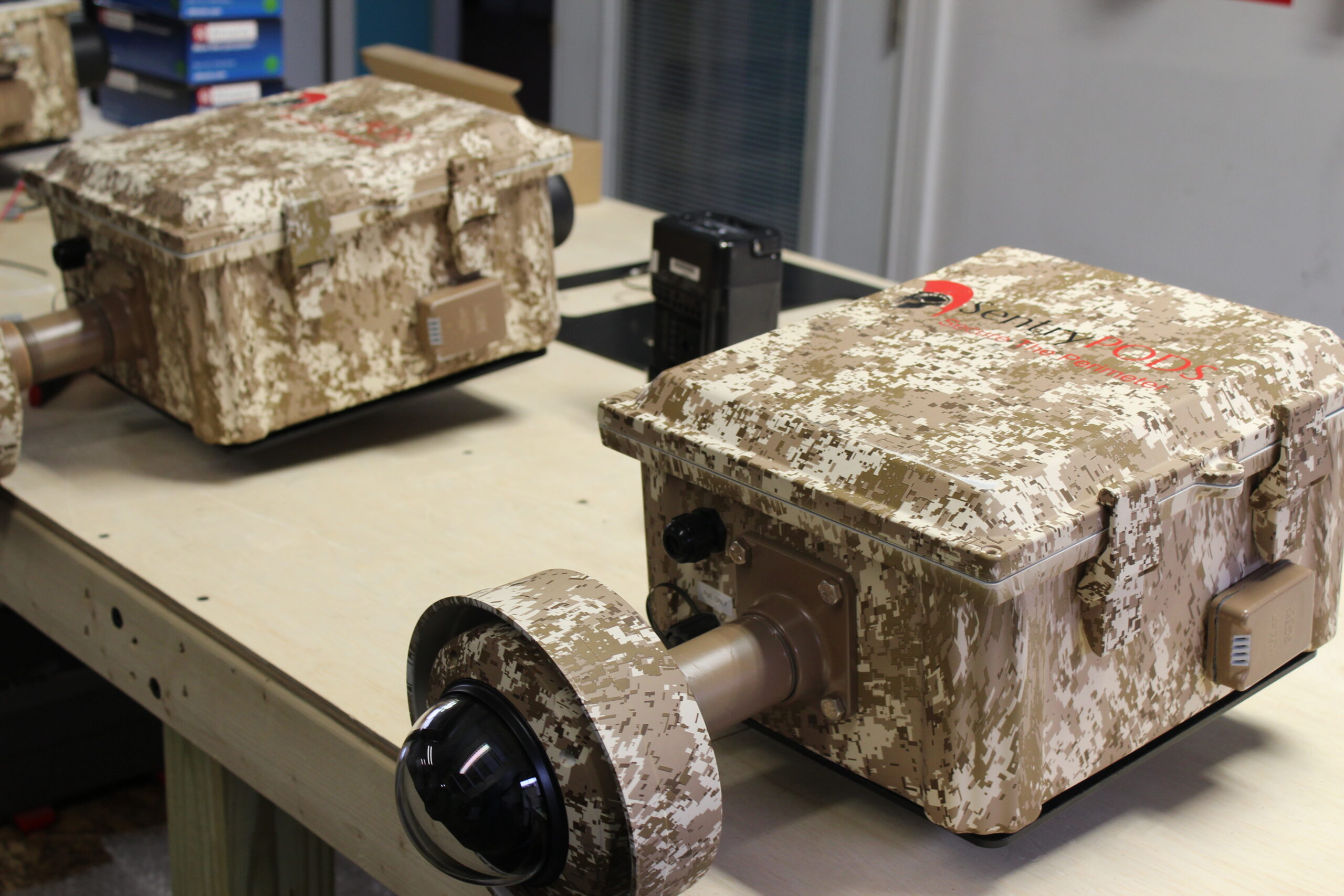

SentryPODS MINI photographed during assembly in the Ashland, Ohio shop

Made in the USA

Built here.
Ready anywhere.

MINI is made in the USA and assembled with the care, responsiveness and accountability that come from building close to home.

  • Made in the USA
  • Assembled and supported in Ashland, Ohio
  • Built for commercial and industrial environments

Technical overview

Compact by
design.

AC-powered mobile surveillance with internal battery and network redundancy.

PDF / 2 pages Download the MINI brochure
Camera
Fixed-position dome · 1/2.7-in progressive scan RGB CMOS
Lens
Varifocal 3–8 mm, F1.3 · remote zoom and focus · P-Iris · IR corrected
Field of view
104–40° horizontal · 74–29° vertical
Day / night
Automatically removable infrared-cut filter
Low light
0.13 lux color · 0 lux B/W at 50 IRE, F1.3
Shutter
1/33500 s to 1/5 s
Adjustment
Pan ±180° · tilt ±75° · rotation ±175°
Camera power
PoE · 8.6 W typical · 11.1 W maximum
Connectivity
4G LTE · Wi-Fi · GPS · 2 Ethernet ports
AC input
115 VAC · 60 Hz · 1.9 A
Battery
288 Wh lithium-ion · approximately 500 cycles
Unit size
22 × 10 × 6 in · 25 lb
Protection
NEMA 1, 3R, 4, 4X, 6P and 12 · IP66, IP67 and IP68
Temperature
−20°C to 60°C · 0°C to 50°C optimal

Purchase or lease

A compact fit
for your site.

Choose the ownership path that works for your coverage area, timeline and operating model.

Purchase $7,427.08 One-time equipment price
Monthly lease $740/mo Flexible deployment option

Pricing may vary with configuration, connectivity, installation, shipping and project requirements.

Configure your MINI

MINI / Compact AC-powered surveillance

Cover more.
Carry less.

Tell us about your coverage area, connectivity, mounting and monitoring requirements.

Start a project brief Download brochure
